Our Products

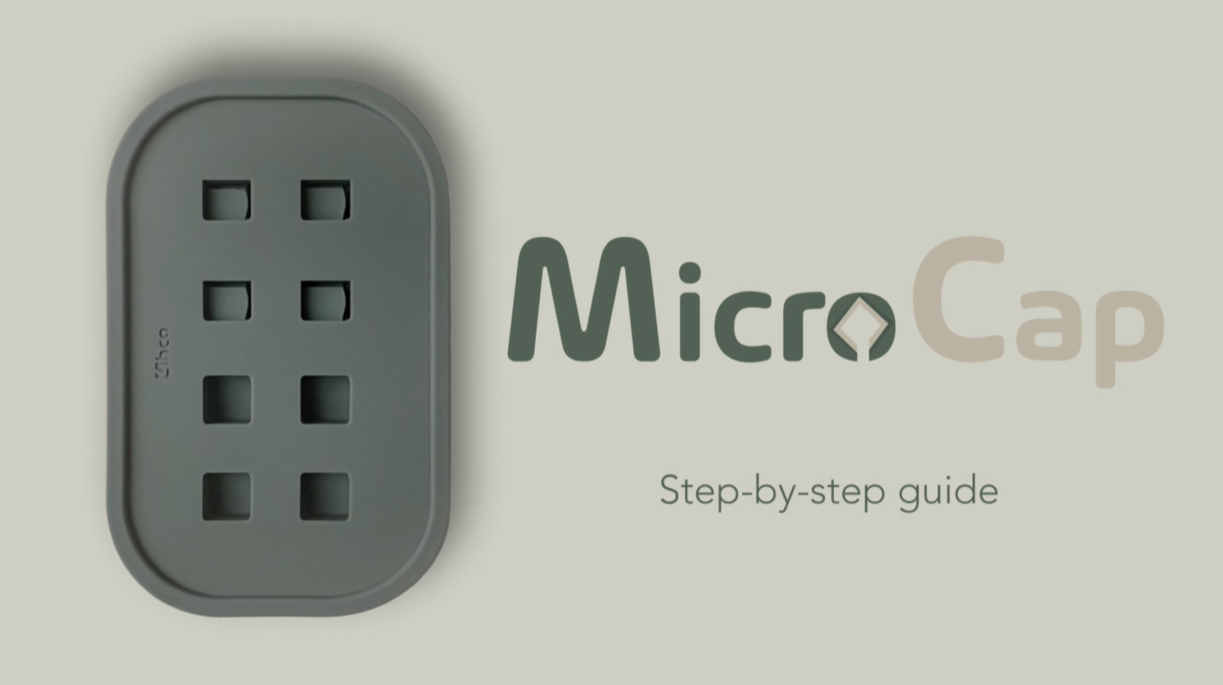

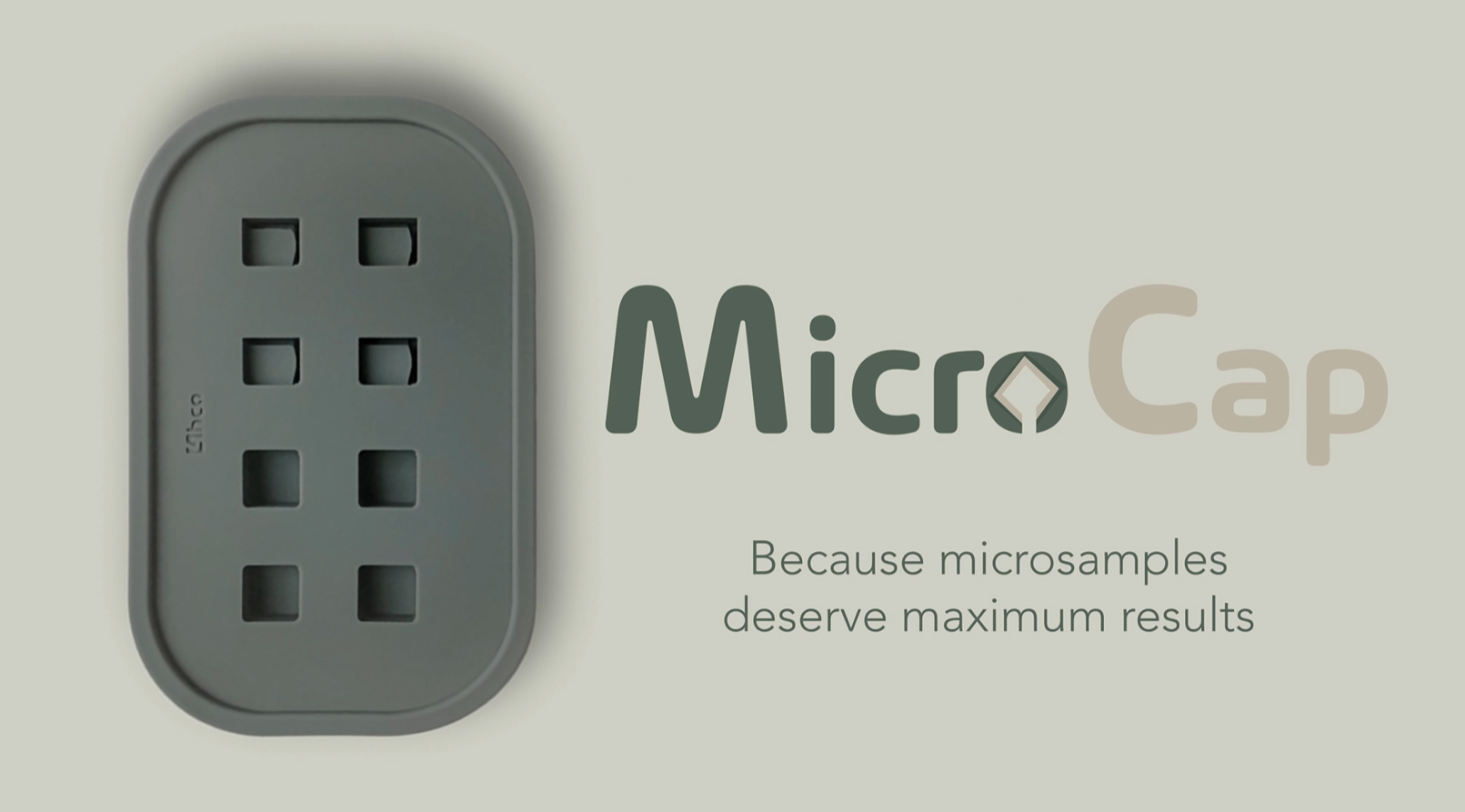

Samples and labels are fully embedded and ready for study by Light Microscopy and Scanning Electron Microscopy.
A) Polishing line limit.
B) Wall. Permits to locate simples at same distance from the surface.
C) Label.
A) Polishing line limit.
B) The capsule size permits to study the sample by Light Microscopy and Scanning Electron Microscopy.
C) Label.
4 STEPS TO FOLLOW
1. LABELING
Use standard 5 x 35 mm adhesive-backed label paper to write the sample ID code.
2. SAMPLE PREP
Place the selected sample inside the Art.Cap1/2.
Postition the sample to the top and center of the wall.
Add a drop of cyanoacrylate adhesive to hold the sample in position.
3. EMBEDDING
Prepare the Epoxy resin.
Introduce the prepared ART.cap1/2 inside the full holes of the ART.mold. 100 and cover it with epoxy resin.
Prepare more half capsules. It is possible to embed 12 samples and produced 12 half capsules with one epoxy resin preparation.
4. POLISHING
Hand polishing can be done in few minutes.
Sample is ready to be observed under the microscope.
Why use ARTmold100?
GREEN FRIENDLY
Due to the small size of the capsules it is possible to save epoxy resin and prepare the amount needed to embed 4 samples and produce 4 other half capsules for future samples.
WORKSHOPS
We offer workshops on light microscopy sample preparation in academic conservation schools, museums and research institutions.
The theoretical and practical workshop designed by 4Heritage Conservation allows you to make the most of
ARTmold100
For more information about these workshops, please contact us! We can design the workshop based on your audience and needs.
Interested in ARTmold100?
